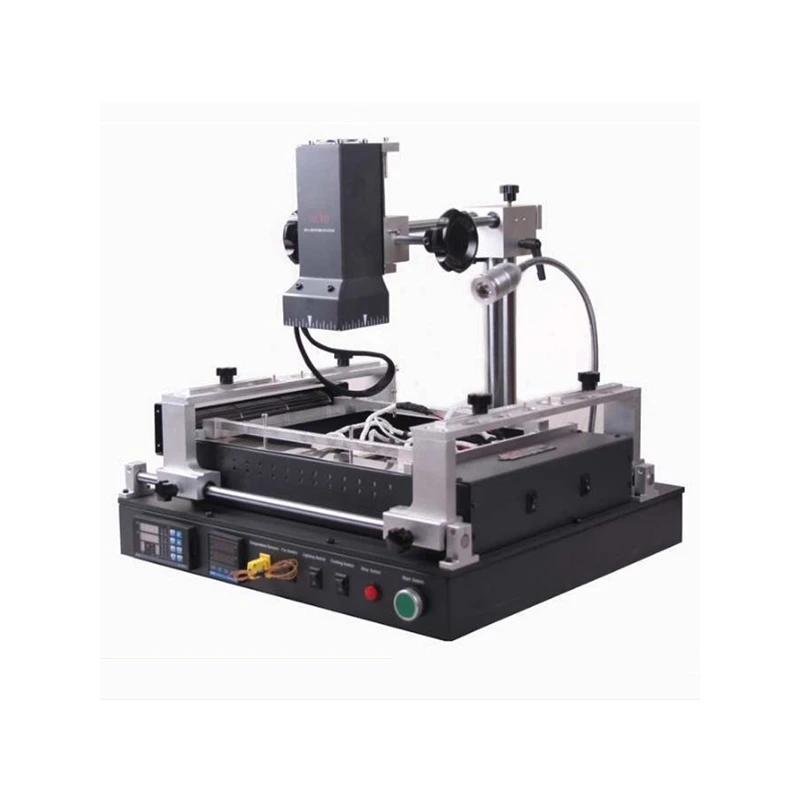

I'm going to show you how to connect and set- up your ACHI re-work station to your PC/Lap-Top this is for the IR PRO SC, IR6000 & IR6500 All three machines use an RS232 port to connect to your PC/Lap-Top. You can purchase an RS232 to USB converter very cheaply. Let's start the software. We get a Pop-Up with a lot of Symbols.
This is because the ACHI is not connected to the PC/Lap-Top Let's press OK and continue. The Software starts and it appears to be fine. I can select the Tabs. But when I try to select Run/Stop button. I get a Pop-Up. This is telling us that the Software isn't communicationg with the Machine.
Select OK and Close the Programme (EXIT). Make sure you have your RS232 cable plugged in and that your Machine is switched ON. 1) Goto My Computer. 2) Right-Click mouse.
3) Scroll down. 4) Select Properties. 5) Select Hardware Tab. 6) Select Device Manager. We need to look at Ports COM & LPT. Click on the '+' Symbol to open it up. On mine there is only a Printer Port active.
So now I plug in my RS232 to USB adapter and wait for Windows to find it. You can see a new port has appeared. USB Serial Port (COM1). Assume your's isn't on COM. Right-Click your mouse on USB Serial Port (COM1). Scroll down and select Properties. Select Port Settings.
Select Advanced. Click on the Down Arrow next to COM1 box. Select OK again. Close Device Manager. Close System Properties.
Let's run the ACHI IR-SOFT software again. No Pop-Up message this time so we know the software is communicating with the ACHI.
Select RUN/STOP button. The programme sends a signal to the ACHI and starts the profile. Select RUN/STOP button again and the ACHI stops the profile.
Achi Ir Pro Sc Manual Programs To Get
Achi Ir Pro Sc Manual Programs To Start
My next video will show you how to Programme the Curve Set (Profile) and the Basic Settings. Many thanks for watching.We hope this has helped you get the most out of your ACHI.
